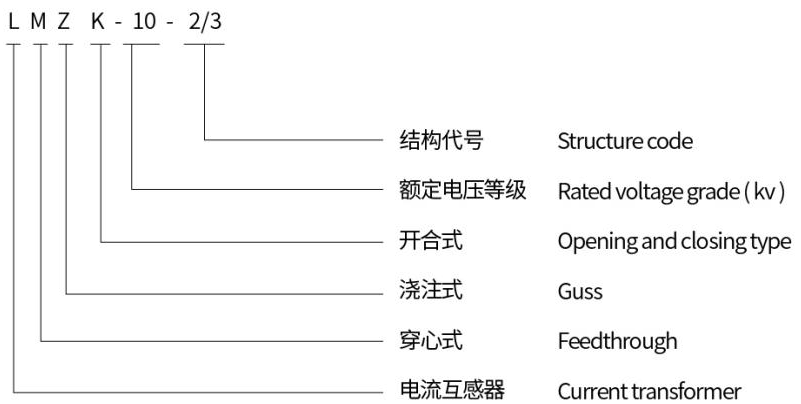

型號含義 Type description
技術參數 Technical data
型號 Type | 用途 Purpose | 測量電流互感器 Measuring current | 保護電流互感器 Peotective Current transformer | 雙繞組電流互感器 Double winding current transformer | ||||||
電流比 current ratio | 準確級及額定負載(VA) Accuracyclass and rated burden | 準確級及額定負載(VA) Accuracy class and rated burden | 準確級及額定負載(VA) Accuracy class and rated burden | |||||||
0.5 | 1 | 3 | 10P5 | 10P10 | 0.5 | 1 | 10P10 | 10P5 | ||
LMZK-10 | 50/5 | 2.5 | ||||||||
75/5 | 2.5 | |||||||||
100/5 | 2.5 | 2.5 | ||||||||
150/5 | 2.5 | 3.75 | 1.5 | |||||||
200/5 | 2.5 | 2.5 | 5 | 2.5 | ||||||
300/5 | 2.5 | 2.5 | 5 | 2.5 | 2.5 | 1.5 | ||||
400/5 | 5 | 5 | 5 | 2.5 | 2.5 | 2.5 | 2.5 | |||
500/5 | 5 | 5 | 5 | 2.5 | 2.5 | 2.5 | 2.5 | |||
600/5 | 5 | 5 | 5 | 2.5 | 2.5 | 2.5 | 2.5 | |||

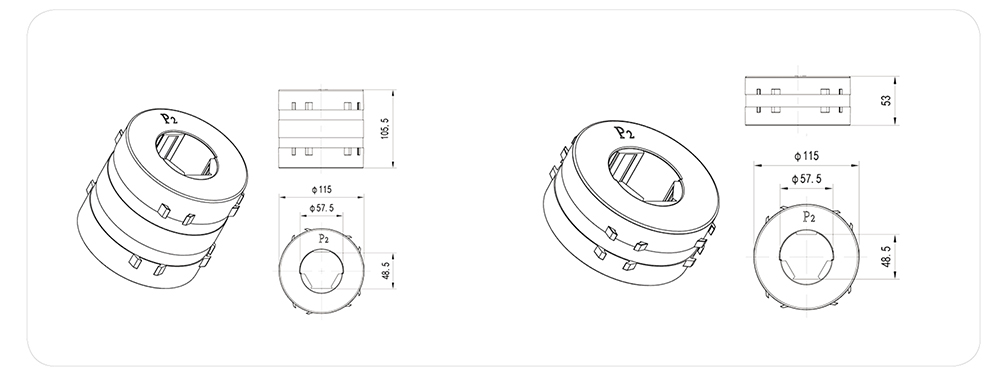

外形及安裝尺寸 Overall dimension drawing
