技術參數Technical data
戶內全封閉環氧樹脂澆注式
產品性能符合標準GB20840.3和IEC60044-2額定絕緣水平12/42/75kV
額定頻率50Hz
Indoor totally enclosed epoxy resin pouring type
The product performance meets the standard gb20840.3 and iec60044-2Rated insulation level 12/ 42/75KV
Rated frequency: 50 Hz
技術參數Technical data
型號 Type |
電壓比(V) Voltage ratio (V) |
準確級組合 Accuracy level combination |
額定輸出 (VA) Rated output (VA) | 剩余電壓繞組 Residual voltage winding |
極限輸出(VA) Limit output (VA) |
額定絕緣水 平(KV)Rated insulation level (kV) | ||||
準確級 Accuracy level | 額定輸出 (VA) Rated output (VA) | |||||||||
JSZY16-10R | 10000√3 | 100/√3 | 100/√3 | 100/√3 | 0.2 | 15 |
6P |
30 |
500 |
12/42/75 |
0.5 | 15 | |||||||||
√3 √3 √3 √3 | 0.2 | 15 | ||||||||
0.5 | 20 | |||||||||
3 | 500 | |||||||||

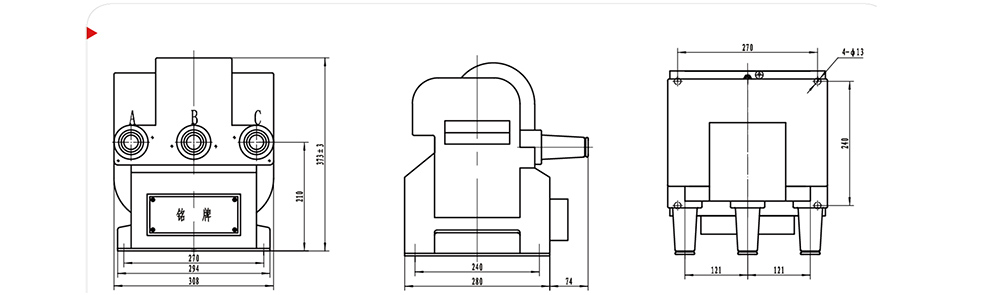

外形及安裝尺寸Overall dimension drawing
