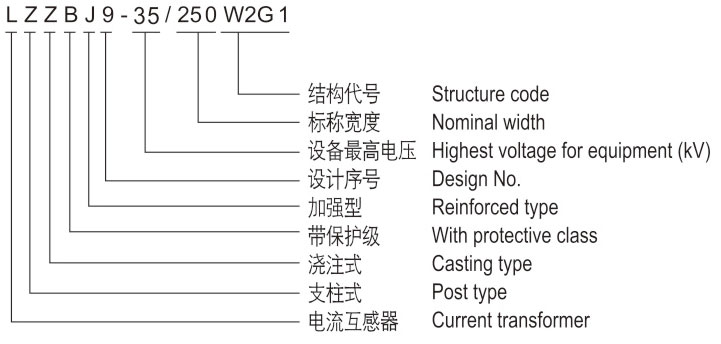

型號含義 Type description
技術(shù)參數(shù)Technical data
額定一次電流 Rated primary current(A) | 準確級組合 Accuracy classes combination | 額定二次輸出 Rated secondary output(VA) | 額定熱電流 Short-time thermal current(kA/S) | 額定動穩(wěn)定電流 Rated dynamic current (kA) | |||
0.2(S) | 0.5(S) | 5P15 | 5P20 | ||||
20-100 |
0.5(S)/5P15/5P20 0.5(S)/5P15/5P20 |
10 |
15 |
15 |
15 | 0.0611n | 0.1511n |
150-200 | 9 | 22.5 | |||||
300-500 | 18 | 45 | |||||
600-1250 | 15 | 30 | 15 | 20 | 36 | 90 | |
1500-2000 | 20 | 40 | 20 | 30 | 80 | 160 | |
2500 | 20 | 40 | 20 | 20 | |||

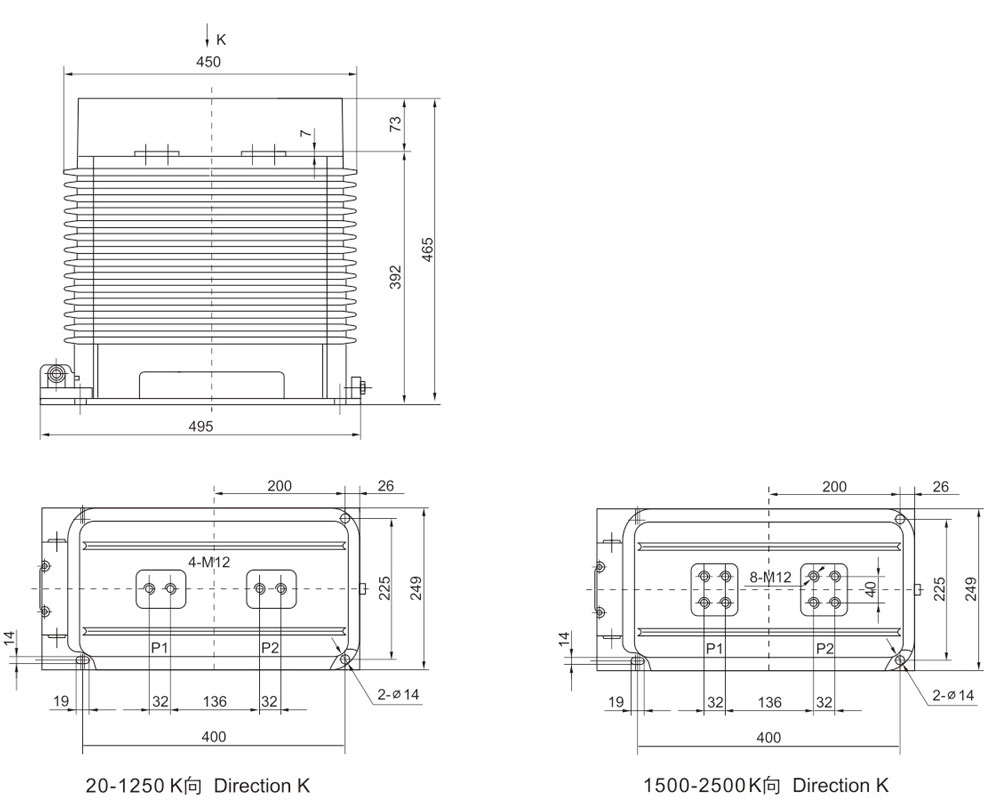

外形及安裝尺寸0verall dimension drawing
