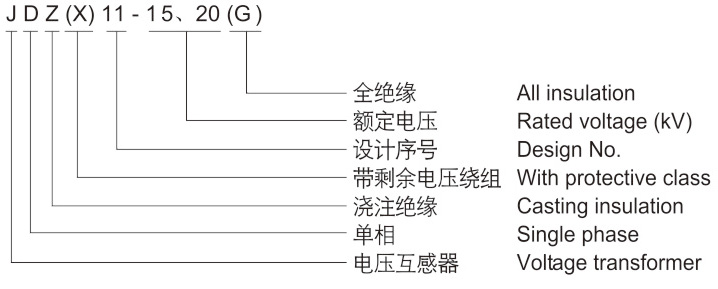

型號含義 Type description
技術(shù)參數(shù)Technical data
型號 Type | 額定電壓比 Rated voltage ration (kV) | 額定二次輸出 Rated secondary output(VA) | 極限輸出 Max.output (VA) | 額定絕緣水平 Rated insulation level (kV) | 接線圖 Wiring diagram | ||||||
0.2 | 0.5 | 1 | 0.2/0.2 | 0.2/0.5 | 0.5/0.5 | 6P | |||||
JDZ11-15 | 15/0.1 |
30 |
80 |
200 | / | / | / | / |
500 | 18/55/105 |

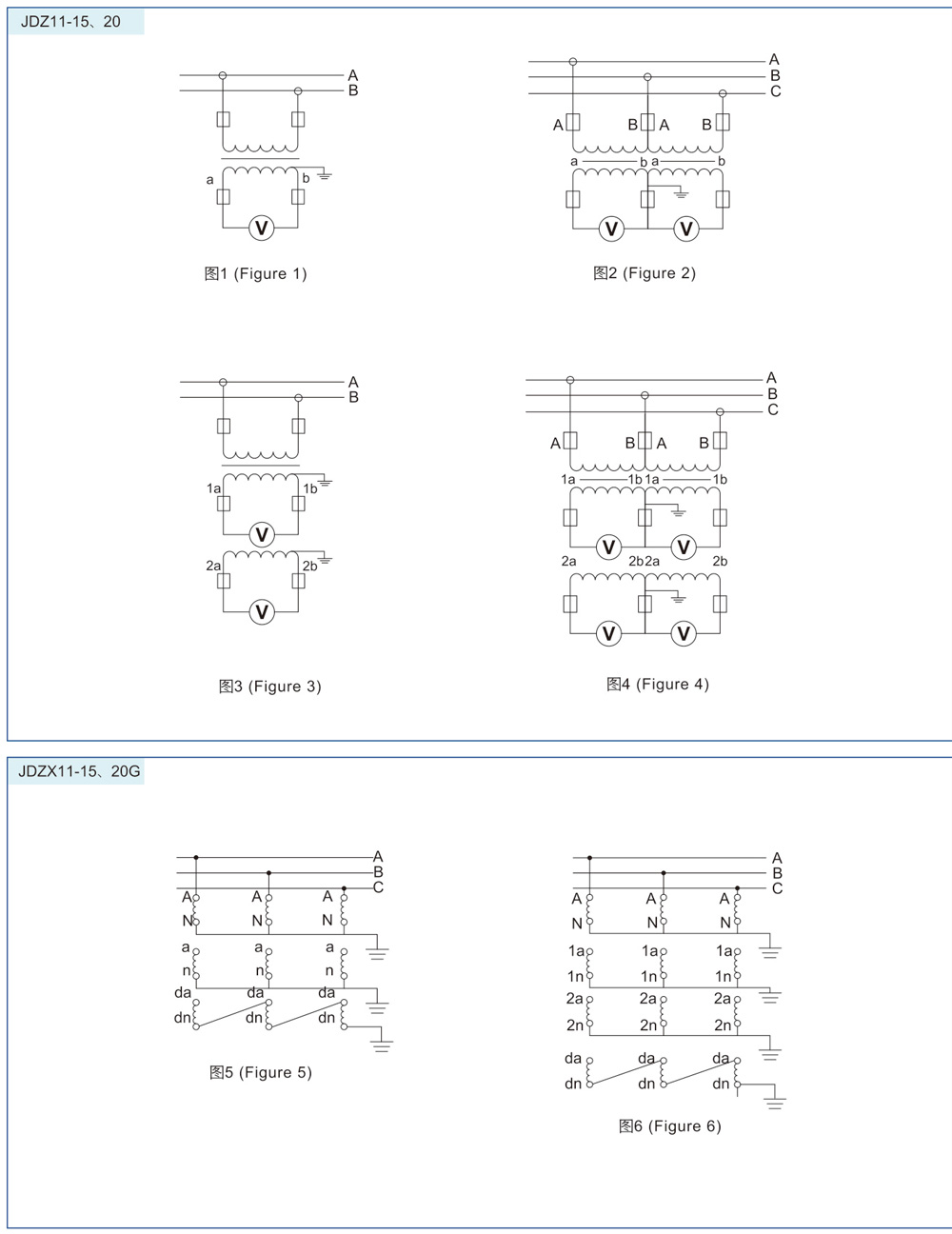

圖1-4 Fiagure 1-4 |
JDZ11-20 | 20/0.1 | 24/65/125 | |||||||||
JDZ11-15 | 15/0.1/0.1 | / | / | / | 20/20 | 20/30 | 30/30 | / |
300 | 18/55/105 | |
JDZ11-20 | 20/0.1/0.1 | 24/65/125 | |||||||||
JDZX11-15G | 15//3/0.1//3/0.1/3 |
20 |
60 |
120 | / | / | / |
100 |
400 | 18/55/105 | 圖5 Fiagure 5 |
JDZX11-20G | 20//3/0.1//3/0.1/3 | 24/65/125 | |||||||||
JDZX11-15G | 151/3/0.1//3/0.1//3/0.1/3 | / | / | / | 15/15 | 15/20 | 40/40 | 300/300 | 18/55/105 | 圖6 Fiagure 6 | |
JDZX11-20G | 20//3/0.11/3/0.1//3/0.1/3 | 24/65/125 | |||||||||

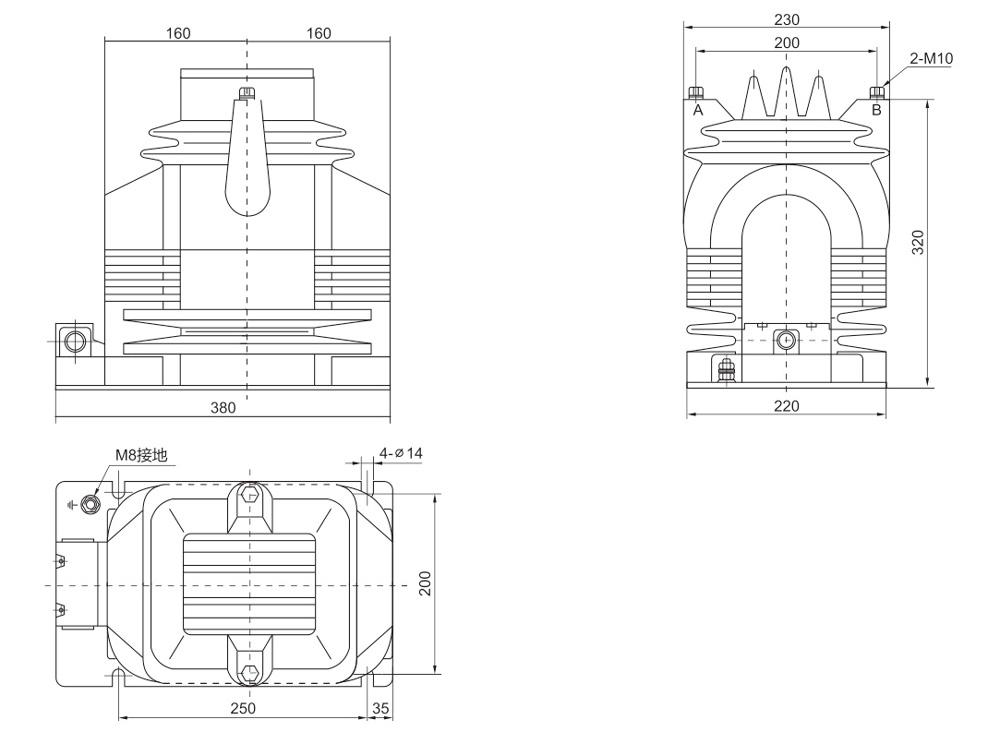

外形及安裝尺寸0verall dimension drawing
接線圖Wiring diagram
